Hunter Engineering Product Line

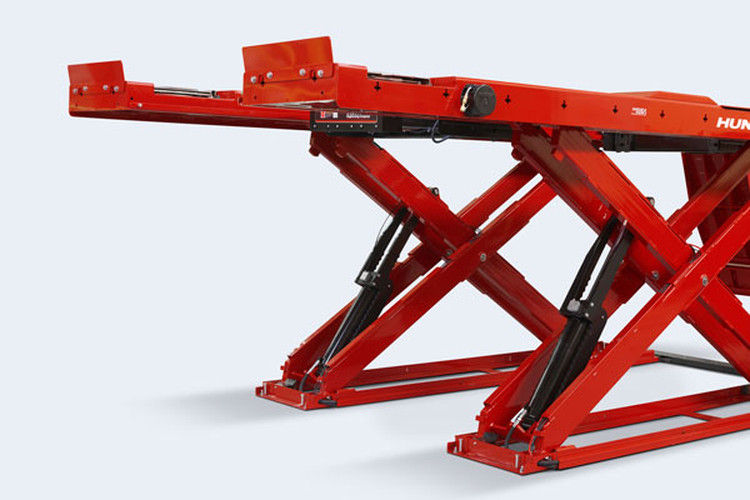

Scissor Alignment Lifts
Hunter's automotive scissor lift family offers four capacities and several wheelbase lengths to meet virtually any need. Hunter vehicle scissor lift racks feature low drive on heights for all models, or even popular flush mount configurations. Add Inflation Station, PowerSlide, and AlignLight options to really ramp up productivity. New harsh-duty options available to for high road salt/brine use applications
Every shop is different and has varied needs, our expert sales team stands ready to help you select the right lift for your shop. We serve customers in Maryland, Virginia, Metro D.C., West Virginia and Delaware. Monday-Friday from 8am to 5pm. Give us a call for more information at 800.604.9653 or contact us below.
Features at a glance
-
Open-front and rear access
-
Stainless steel turnplates standard
-
Built-in slip plates standard
-
Two moveable worksteps standard
Specifications at-a-glance
-
10-16,000 lb Capacities Available
-
Two Swing Jacks Standard
-
24" & 25" Wide Runways
-
62"-195" 2-Wheel Alignment Wheelbase
Documents
Specification Sheets
RX10 Surface-Mount Specifications
RX10 Flush-Mount Specifications
RX10 Long Flush-Mount Specifications
RX10 Flush-Mount with Inflation Station Specifications
RX12 Surface-Mount Specifications
RX12 Flush-Mount Specifications
RX12 Flush-Mount with Inflation Station Specifications
RX14 Surface-Mount Specifications
RX16 Flush-Mount Specifications
RX16 Flush-Mount with Inflation Station Specifications
Accessories
Lift Features
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Built-in Rear Slip Plates
88" to 158" long for 4-wheel alignments on any vehicle.

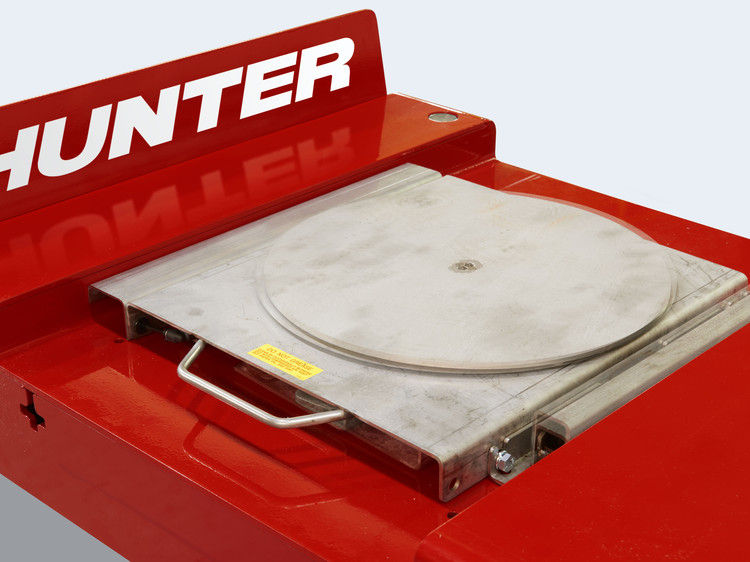

Stainless Steel Turnplates
Stainless Steel Turnplates Standard, for a lifetime of easy and accurate alignments.
Louvered Approach Ramps
High traction prevents wheel spin. Better than diamond plat or abrasive finish.

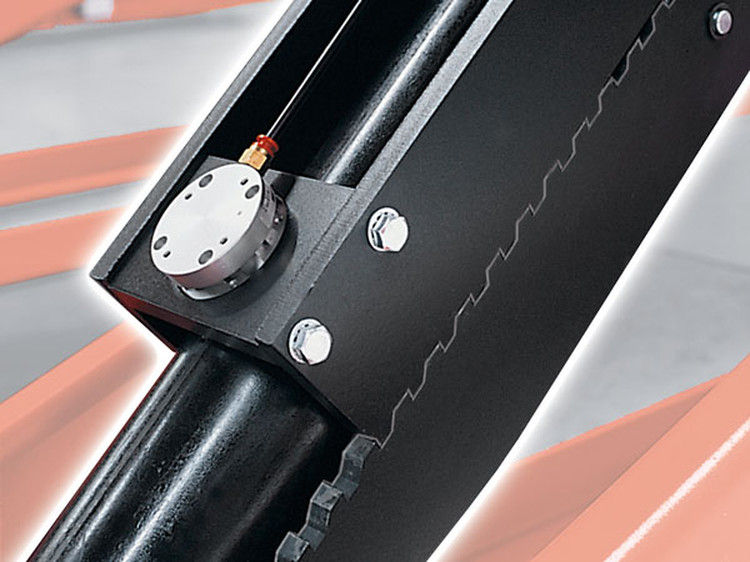

Sixteen Position Locks
Fine mesh locks insure levelness and safety.
Flush-Mounting
Eliminate ground clearance concerns, and give your workspace a premium appearance.
Extra-Wide Runways
Drive-on ease, up to vehicles 92" wide, wheelbase choices allow for fits for every shop.
Fast Descent
Reduced lowering time by 50% with soft landing ensures safety.
Swing Air Jack Equipped
Two high-capacity swing air jacks come equipped—an industry standard with unmatched height, reach and durability.
Electronic Level Control
Keeps runways level at all time shuts down with obstruction

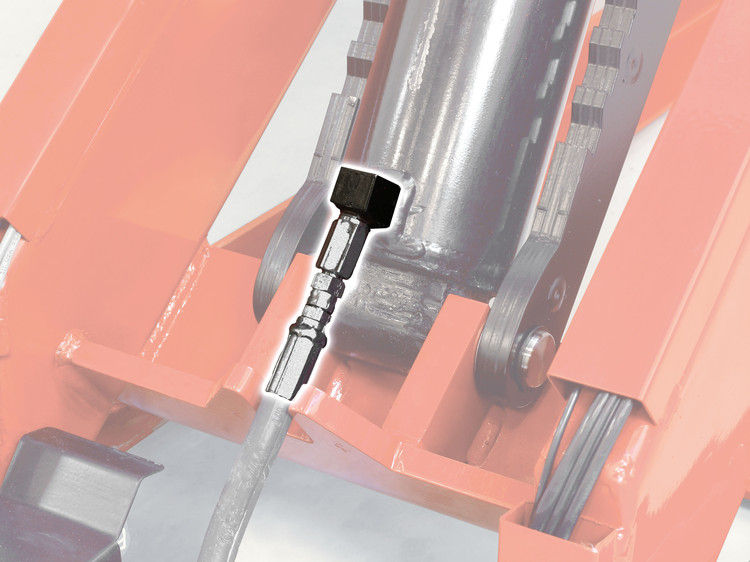

Hydraulic Safety Fuses
Instantly shutdown in event of hose failure
Optional Alignlights
See where you work. Lights shut off automatically when rack is lowered, light when raised.

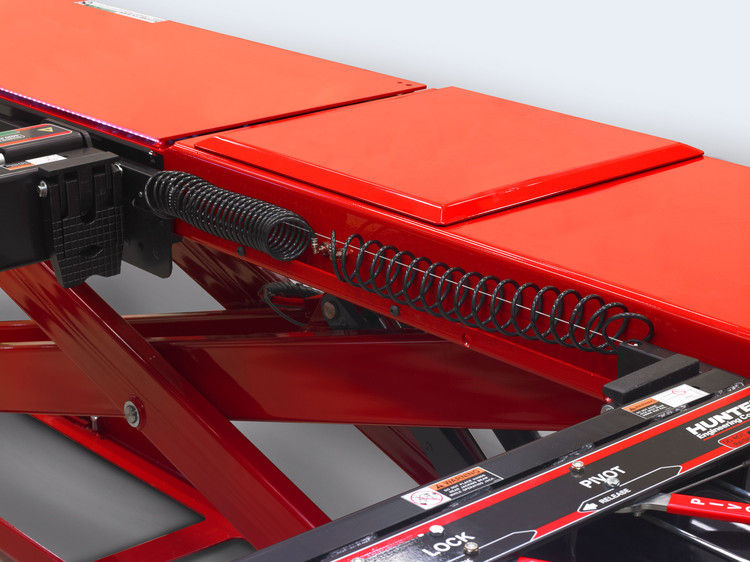

Air Line Kit
Air supply to jacks and auxiliary ports standard.
Two Movable Worksteps
Sturdy, lightweight and lock into multiple convenient locations (not suitable for flush lifts).
Scissor Alignment Lifts - Product Family At-a-glance
RX16
-
16,000 lb capacity
-
2 x 9,000 lb capacity jacks
-
195" 2-wheel alignment wheelbase
-
Flush mount only
-
PowerSlide and Inflation Station capable
RX14
-
14,000 lb capacity
-
2 x 9,000 lb capacity jacks
-
195" 2-wheel alignment wheelbase
-
Flush mount only
-
PowerSlide and Inflation Station capable
RX12
-
12,000 lb capacity
-
2 x 6,000 lb capacity jacks
-
179" 2-wheel alignment wheelbase
-
Flush or surface mount
-
PowerSlide and Inflation Station capable
RX10
-
10,000 lb capacity
-
2 x 6,000 lb capacity jacks
-
162" - 179" 2-wheel alignment wheelbase
-
Flush or surface mount
-
PowerSlide and Inflation Station capable
