Hunter Engineering Product Line
Hunter Four-Post Lifts
Easy to use open-front models make alignment easy. The widest runways and two wheelbase lengths make easy work of even large trucks. Add Inflation Station, PowerSlide, and Alignlight options to really ramp up productivity. New Harsh Duty options are available for high road salt/brine use applications.
Every shop is different and has varied needs, our expert sales team stands ready to help you select the right lift for your shop. We serve customers in Maryland, Virginia, Metro D.C., West Virginia and Delaware. Monday-Friday from 8am to 5pm. Give us a call for more information at 800.604.9653 or contact us below.
Features at a glance
-
Open-front or closed-front configurations
-
Stainless steel turnplates standard
-
Built-in slip plates standard
-
Two moveable worksteps standard
Specifications at-a-glance
-
18,000 lb Capacity
-
2 x 9,000 lb Capacity Jacks
-
26" Wide Runways
-
177" or 211" 2-Wheel Alignment
Documents
Specification Sheets
Four-Post Lift with Open-Front Workspace Specifications
Four-Post Lift with Closed-Front Workspace Specifications
Accessories
Lift Features
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Built-in slipplates
88" to 158" for 4-wheel alignments

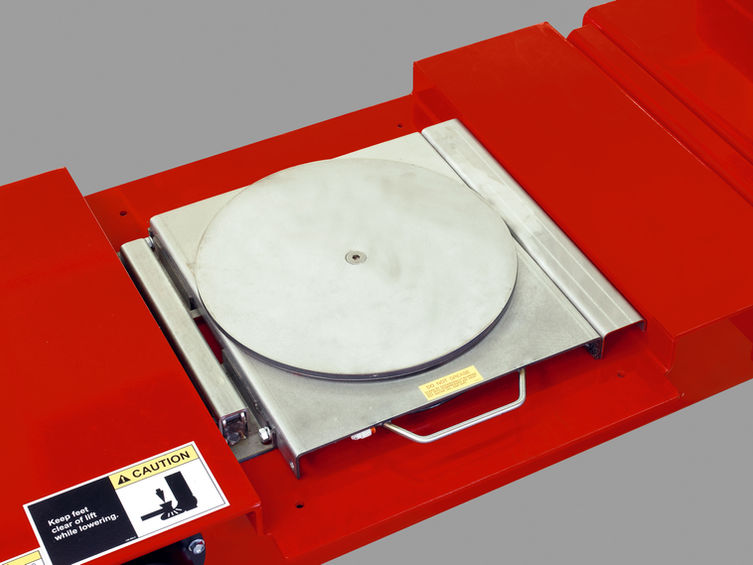

Stainless steel turnplates
Standard, for a lifetime of easy and accurate alignments. PowerSlide™ turnplates offer ease-of-use.
Airline access
Air supplied to jacks and auxiliary ports come standard.
Two movable worksteps
Sturdy, lightweight and lock into multiple convenient locations
Optional AlignLights
See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
Open-front workspace
Easy access to service points and jacks. Standard on L451 models
Capable runways
26-in. extra-wide runways can service vehicles up to 92 in. Two lengths are available to accommodate 177-in. or 211-in. wheelbases.
High-capacity
Heavy-weight 18,000-lb. lifting capacity is best-in-class.
Swing air jacks
Two 9,000-lb. capacity swing air jacks come standard for unmatched height, reach and durability.
Integrated controls
Convenient console featuring push-button functions give technicians full-control.
Cables and Locks
High-strength galvanized cables and 16-position louvered level locks provide long, reliable life.
Louvered approach ramps
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Tough umbilical covering
Protective cord covering prevents damage to air and hydraulic lines.
Four -Post Lifts - Product Family At-a-glance
L451
-
Open Front - No Beam
-
177" 2-wheel alignment wheelbase
-
Powerslide and Inflation Station capable
L451L
-
Open Front - No Beam
-
211" 2-wheel alignment wheelbase
-
Powerslide and Inflation Station capable
L454
-
Closed Front Beam
-
177" 2-wheel alignment wheelbase
-
Powerslide and Inflation Station capable
L454L
-
Closed Front Beam
211" 2-wheel alignment wheelbase
-
Powerslide and Inflation Station capable
