Hunter Engineering Product Line

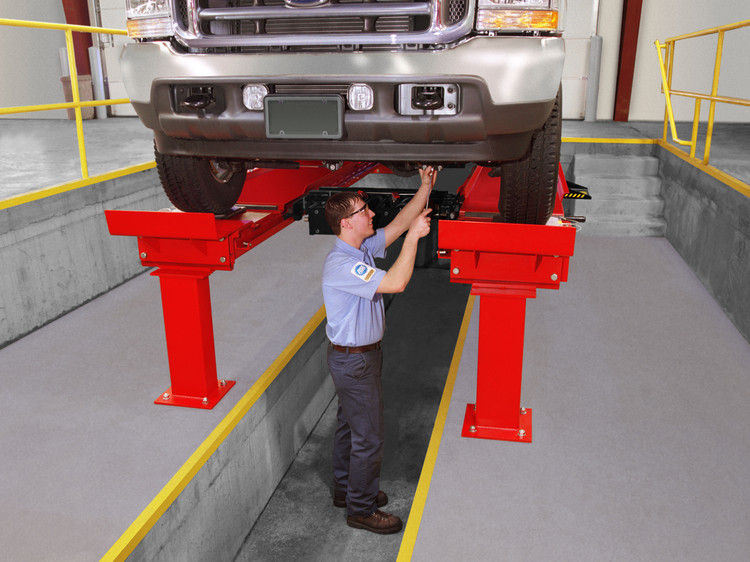

High-capacity alignment lift for commercial vehicles
Hunter’s Heavy-Duty Four-Post semi and truck lift features a 35,000-lb. lifting capacity and 300-in. alignment wheelbase capability. The galvanized runways offer the best in corrosion protection for your investment. The lift comes alignment ready with turnplate pockets and slipplates for servicing standard vehicles. It can be equipped with optional Powerslide® and FIA turnplates and slipplates saving time by eliminating trips around the truck when locking and unlocking plates. The aligner can be connected to control all lock and unlock functions automatically. Optional 20,000lb jacks and LED AlignLights can be added to make service easier and safer.
Every shop is different and has varied needs, our expert sales team stands ready to help you select the right lift for your shop. We serve customers in Maryland, Virginia, Metro D.C., West Virginia and Delaware. Monday-Friday from 8am to 5pm. Give us a call for more information at 800.604.9653 or contact us below.
Features at a glance
-
Galvanized runways
-
PowerSlide-capable turnplates and slipplates
-
Powerful 20,000-lb. jacks (optional)
-
LED lighting (optional)
Specifications at-a-glance
-
35,000 lb Capacity
-
30" Runway Width
-
300" Alignment Wheelbase
-
320" Service Wheelbase
Documents
Specification Sheets
HD Four-Post Lift Specifications
HD Four-Post Lift Site Requirements
Lift Features
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Locks & pulleys
High-strength galvanized cables and 7 lock positions provide long, reliable life.
Louvered approach ramps
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Tough umbilical covering
Protective cord covering prevents damage to air and hydraulic lines.

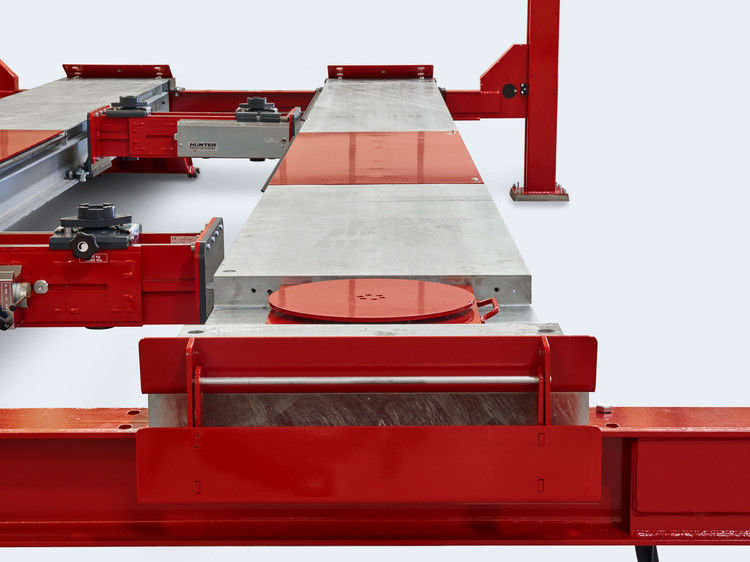

Wide runways
30-in. extra-wide galvanized runways accommodate all vehicles. Align up to 300-in. wheelbases (320-in. service wheelbase).
High-capacity
Heavy-weight 35,000-lb. lifting capacity is best-in-class.
Jacks
Include optional one or two 20,000-lb. capacity hydraulic cylinder jacks to easily raise vehicles off runways.
Integrated controls
Convenient console featuring push-button functions give technicians full-control.

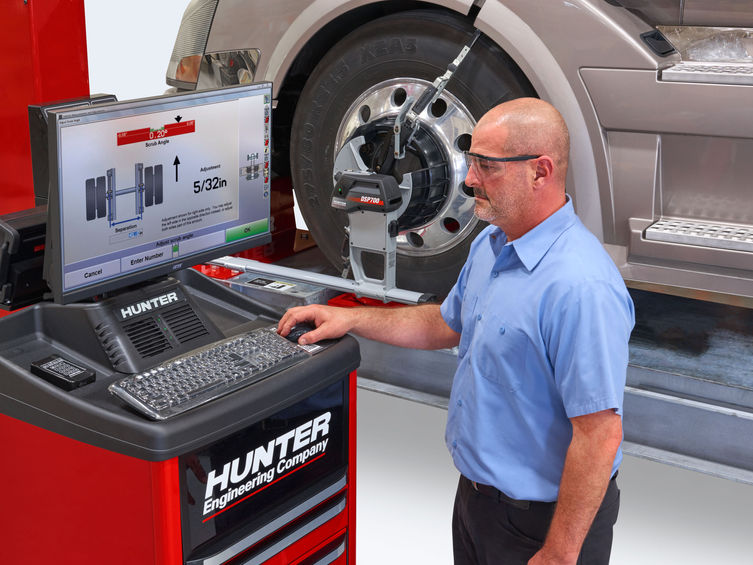

Fully-Integrated Alignment (FIA)
Optional - Control PowerSlide® and raise/lower lift features from the aligner console

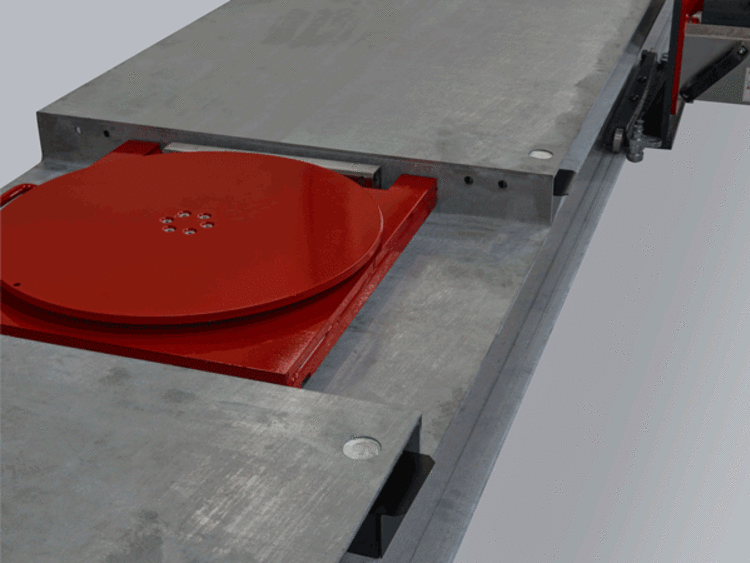

PowerSlide®
Optional - Eliminate struggle with turnplate pins. Turnplates and slipplates lock and unlock at the right time (with FIA).
AlignLights
Optional - See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
